Proven Water Treatment Systems, Delivered Worldwide
Representative Project Configurations
EV Battery Cell Manufacturing
200 t/h Ultra-Pure Water (UPW)
Process route: Raw water → multi-media + softening → two-stage RO → EDI → polishing mixed-bed, delivering 18.2 MΩ·cm UPW.
Configuration: 316L sanitary piping, DOW / Vontron membranes, PLC + HMI with online conductivity and TOC monitoring, fully automatic CIP.
Outcome: Stable 18.2 MΩ·cm supply for electrode-coating and electrolyte washing; handed over on schedule.

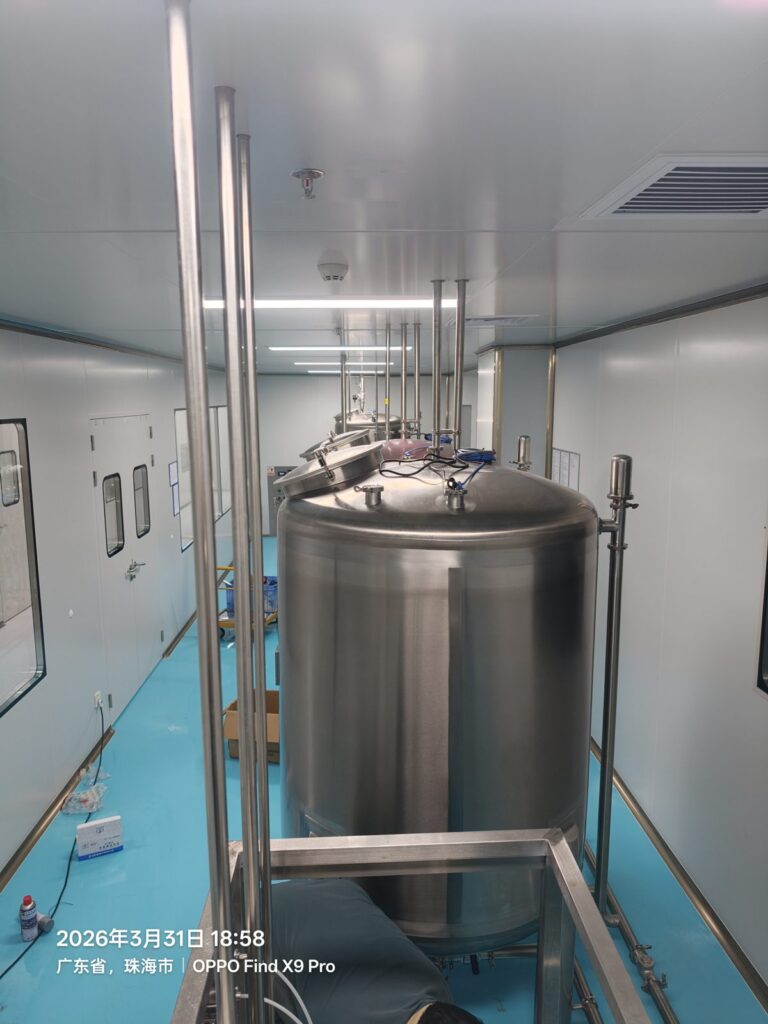

Leading Semiconductor Fab
100 t/h EDI Ultra-Pure Water
Process route: RO + EDI, producing 18 MΩ·cm water with TOC < 50 ppb and tightly controlled particles.
Configuration: GMP-cleanroom-grade distribution loop, 316L orbital-welded piping, ORP and conductivity monitoring on every branch.
Outcome: Meets wafer-rinse specifications; continuous loop sanitization keeps biofilm risk low.
National Beverage Brand
50 t/h GMP Purified Water

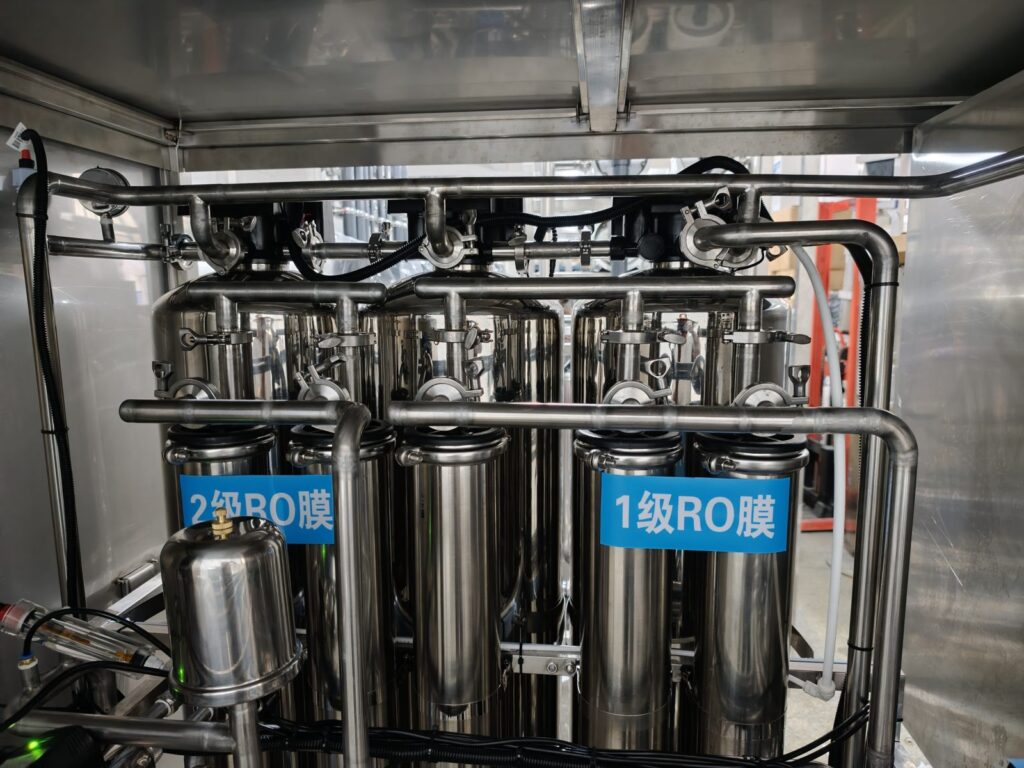

Process route: RO + EDI + UV / ozone, producing food-grade GMP purified water.
Configuration: Sanitary SS304 / 316L, clean-in-place (CIP) capable loop, validated distribution with point-of-use filters.
Outcome: Compliant with food-grade purified-water standard; full validation documentation supplied.
Major HVAC / Appliance Maker
80 t/h Deionized Water
Process route: RO + mixed-bed deionization, delivering deionized water for component rinsing and plating.
Configuration: Continuous-regeneration mixed-bed, conductivity interlock that isolates the loop if resistivity drops below setpoint.
Outcome: Consistent low-conductivity supply across three production lines; minimal operator attention.

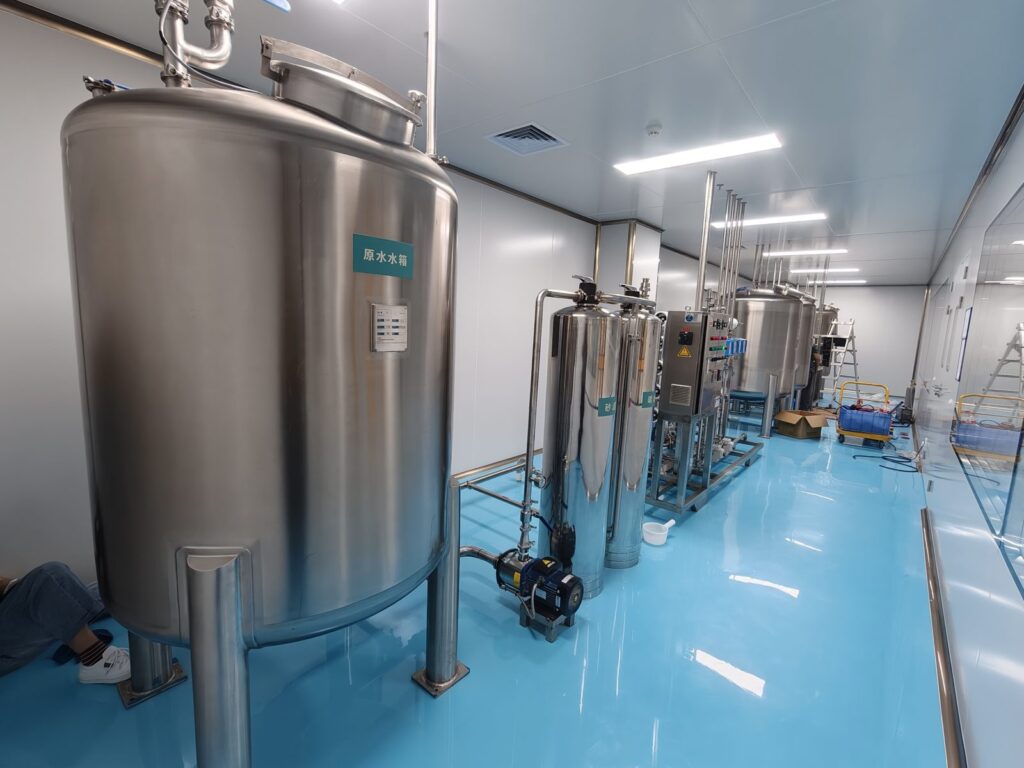

Pharmaceutical Manufacturer
30 t/h Softening + Ultrafiltration
Process route: Automatic softening + ultrafiltration, used as pre-treatment for WFI and boiler feed.
Configuration: Automatic softening valves, UF hollow-fiber modules with hot-water sanitization, skid-mounted for easy relocation.
Outcome: Consistent soft water with controlled microbial load; freed capacity on the existing WFI train.
